GE IS420ESWAH3A IONet Ethernet Switch with 8x 10/100BASE-TX Ports 100 Mbps FX Uplink and -30-65°C Operating Range for Mark VIe Turbine Control
| 起源の場所 | 私たち |
|---|---|
| ブランド名 | GE |
| モデル番号 | IS420ESWAH3A |
| 最小注文数量 | 1pc |
| 価格 | $2800 |
| パッケージの詳細 | 新規およびオリジナルの工場、個別のボックスパッキング |
| 受渡し時間 | 5-7日 |
| 支払条件 | T/T |
| 供給の能力 | 999pcs |
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 名前 | GE IS420ESWAH3A IONETイーサネットスイッチ | 製品ID | IS420ESWAH3A |
|---|---|---|---|
| シリーズ | マーク・ヴィー | 関数 | 入力端子ボード |
| 製品ネットの深さ/長さ | 330mm | 製品ネットの高さ | 200mm |
| 製品ネット幅 | 100mm | 製品ネットウェイト | 2kg |
| 保証 | 1年 | ||
| ハイライト | 8x 10/100BASE-TX Ports IONet Ethernet Switch,100 Mbps FX Uplink Mark VIe Ethernet Switch,-30-65°C Operating Range GE Turbine Control Switch |
||
製品の説明

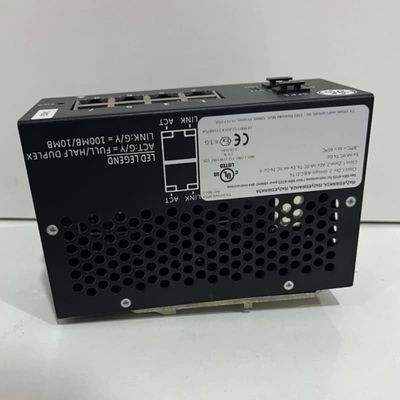

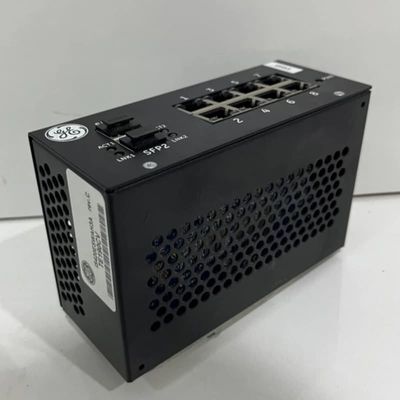

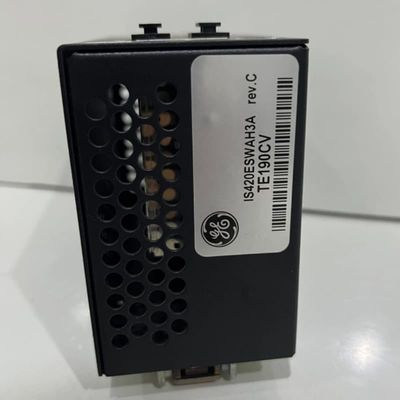

GE IS420ESWAH3A IONet Ethernet Switch
Product Specifications:
The GE IS420ESWAH3A is an IONet Ethernet Switch for the Speedtronic Mark VIe gas turbine control system. It uses Achilles-certified controllers and Fieldbus tech to meet NERC v5 critical infrastructure standards, with 8x 10/100BASE-TX ports and a 100 Mbps FX uplink. Designed for harsh environments, it has a conformal coating, operates at -30–65°C, and withstands 5–95% non-condensing humidity plus UBC seismic vibration. With an MTBF over 4 million hours, it ensures high reliability for turbine control.Key Features:
Robust Connectivity & Standards Compliance: Supports IEEE 802.3/3u/3x, 10/100 copper auto-negotiation, HP-MDIX auto-sensing, and flow control. Integrates IEEE 1588 timing for 1μs packet sync.
Durable Design & Flexible Mounting: Conformal coating resists corrosion; panel or DIN-rail mount with easy access to connections. Compact size: 138x86x56mm.
Redundancy & Diagnostics: Dual 18–36V DC redundant power inputs; dual-color LEDs per port and a power LED for real-time status. 256KB buffer with 4K MAC addresses.
System Compatibility & Performance: Backward-compatible with legacy systems, enables future expansion, and boosts real-time control performance. Meets 4 conformance criteria for multicast packet loads --with/without flow control.
Robust Connectivity & Standards Compliance: Supports IEEE 802.3/3u/3x, 10/100 copper auto-negotiation, HP-MDIX auto-sensing, and flow control. Integrates IEEE 1588 timing for 1μs packet sync.
Durable Design & Flexible Mounting: Conformal coating resists corrosion; panel or DIN-rail mount with easy access to connections. Compact size: 138x86x56mm.
Redundancy & Diagnostics: Dual 18–36V DC redundant power inputs; dual-color LEDs per port and a power LED for real-time status. 256KB buffer with 4K MAC addresses.
System Compatibility & Performance: Backward-compatible with legacy systems, enables future expansion, and boosts real-time control performance. Meets 4 conformance criteria for multicast packet loads --with/without flow control.
Compatible Components
DS200DTBBG1ABB
DS200TCCAF1BDF
DS200SDCIG2AFB
IS200ISBBG1AAB
DS200SDCIG2AHB
IS200CABPG1BAA
DS200BDAAG1AAA
IS200DSFCG1AEB
DS200SIOBH1ABA
IS200DRLYH1BBB
