GE Mark V Series Drive Control Card with 200mm Height 100mm Width and 1 Year Warranty for Turbine Control Systems
| 起源の場所 | アメリカ合衆国 |
|---|---|
| ブランド名 | GE |
| 証明 | COO |
| モデル番号 | DS215GASCG4AZZ01A（DS200SDCCG4AEC+DS200SLCCG3ACC） |
| 最小注文数量 | 1 |
| 価格 | $1500 |
| 受渡し時間 | 5-7日 |
| 支払条件 | T/T |
| 供給の能力 | 999 |
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 名前 | GE DS215GASCG4AZZ01A（DS200SDCCG4AEC+DS200SLCCG3ACC）ドライブコントロールカード | 製品ID | DS215GASCG4AZZ01A（DS200SDCCG4AEC+DS200SLCCG3ACC） |
|---|---|---|---|
| シリーズ | マークv | 製品ネットウェイト | 2kg |
| 製品ネットの深さ/長さ | 330mm | 製品ネットの高さ | 200mm |
| 製品ネット幅 | 100mm | 保証 | 1年 |
| ハイライト | 200mm Height Drive Control Card,100mm Width Drive Control Board,1 Year Warranty Turbine Control Card |
||
製品の説明

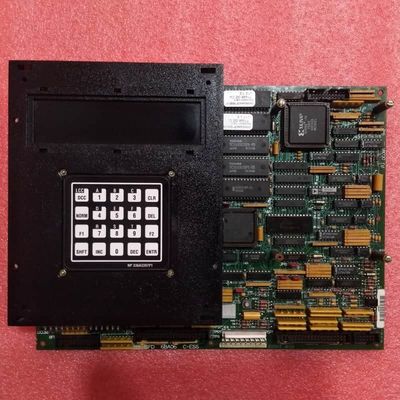

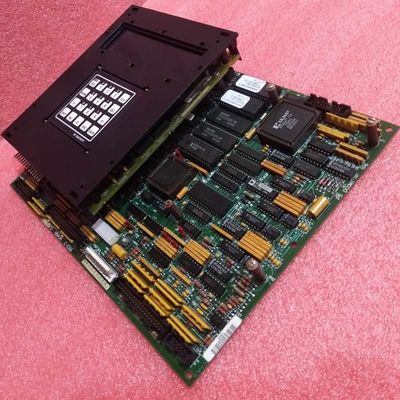

GE DS215GASCG4AZZ01A(DS200SDCCG4AEC+DS200SLCCG3ACC) Drive Control Card
Product Overview
The GE DS215GASCG4AZZ01A(DS200SDCCG4AEC+DS200SLCCG3ACC) is a core Drive Control Board designed for industrial drive systems, likely integrated with GE's Mark V Turbine Control System. This advanced control card features three specialized microprocessors:
- Drive Control Processor (DCP): Manages system-level tasks including chip select decoding, direct memory access (DMA), and interrupt control
- Motor Control Processor (MCP): Handles motor-specific functions
- Co-Motor Processor (CMP): Processes math-intensive tasks beyond the MCP's capability
Key Features
- Expandable Functionality: Supports optional LAN and signal processor cards for diverse communication and signal processing needs
- Intuitive Diagnostics: 10-LED front panel with BCD/binary fault coding enables quick issue identification
- Configurable Hardware: Factory-set JP/WJ jumpers ensure compatibility with flexibility for user adjustments
- Robust Design: Shared RAM allows simultaneous multi-processor access for efficient operation
- Secure Installation: Includes standoffs, nylon washer compatibility, and EPROM transfer guidelines
Installation & Maintenance
For safe installation/replacement:
- Disconnect all power sources before installation to prevent electrocution
- Remove cables from auxiliary cards and securing screws before board removal
- Transfer EPROM modules from defective board to replacement unit
- Use factory nylon washers to prevent screw damage during reassembly
- Ensure plastic holders are properly tightened
Note: All specifications and features are subject to change without notice. Always refer to the manufacturer's documentation for the most current information.
