GE DS200IPCDG1ABA Snubber Board 330mm x 200mm for Mark V Turbine

GE DS200IPCDG1ABA Snubber Board

Product Details:

The GE DS200IPCDG1ABA is a Snubber Board designed for GE’s Mark V Turbine Control System—used to manage wind, steam, and gas turbine automated drives.Its core role is protecting Insulated Gate Bipolar Transistors (IGBTs) by mitigating voltage spikes and reducing stress during IGBT switching, enhancing overall system reliability.

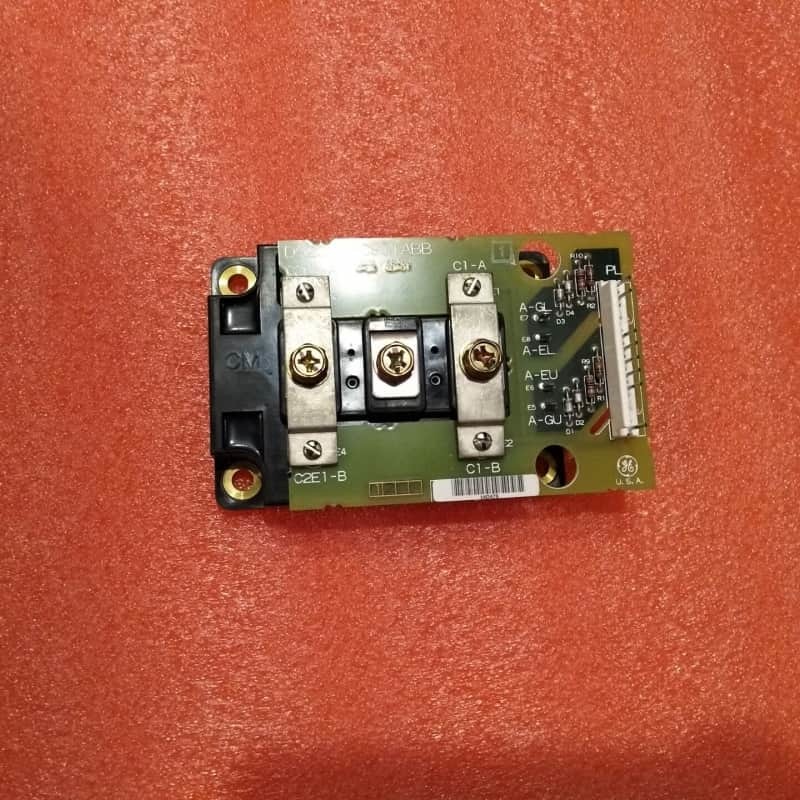

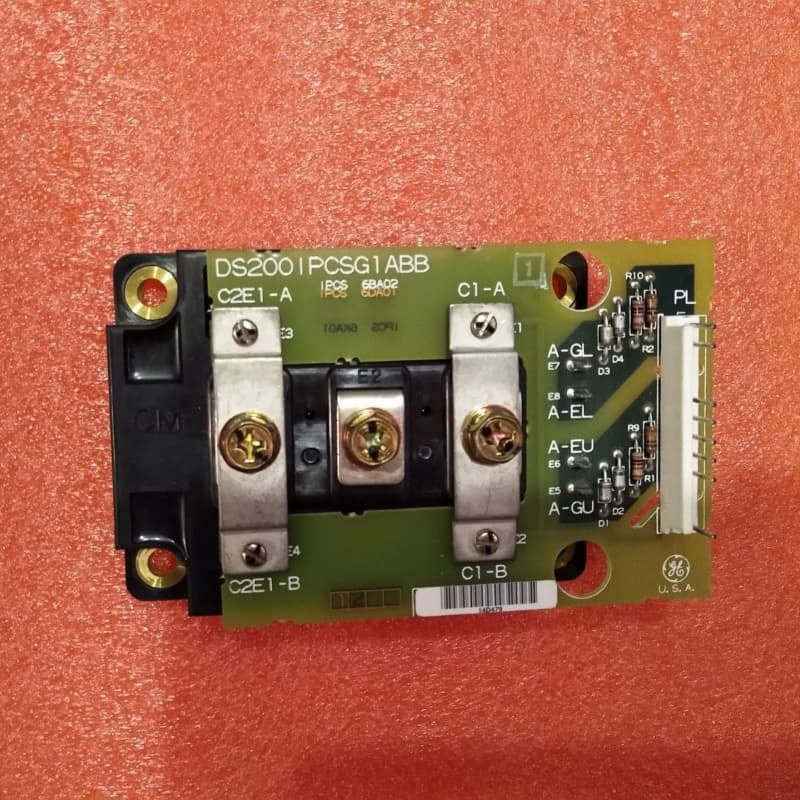

Physically, it features a ribbon cable connector for system integration, large fine-tunable screws for IGBT adjustment, and a solid metal backplane with four factory-drilled insulated holes for installation. Unlike many Mark V boards, it has a small stature and lacks standard components like integrated circuits or capacitors—though it includes diodes for voltage suppression. It undergoes strict manufacturing testing to meet industry standards, ensuring reliable performance in power electronic systems.

Key Features:

IGBT Protection: Functions as a snubber to dampen voltage spikes and reduce switching stress on IGBTs, extending their lifespan and preventing system faults.

Simplified Installation & Adjustment: Solid metal backplane with insulated mounting holes ensures secure installation; large screws allow precise IGBT tuning, streamlining setup.

Targeted Componentry: Compact design with minimal standard Mark V components but includes diodes for voltage suppression, optimizing it for its snubber role.

Quality-Assured Manufacturing: Undergoes stringent testing to meet industry standards, ensuring reliable operation in harsh industrial environments and contributing to overall system longevity.
