GE DS200SDCCG5AHD Drive Control Card Mark V 330mm x 200mm

GE DS200SDCCG5AHD Drive Control Card Mark V Ge Turbine Control

Product Details:

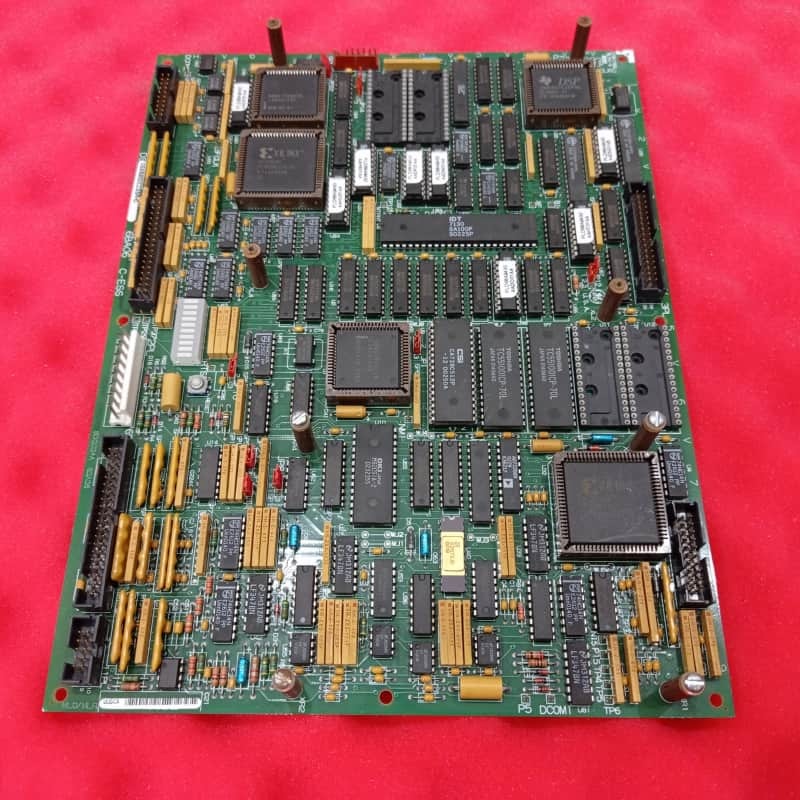

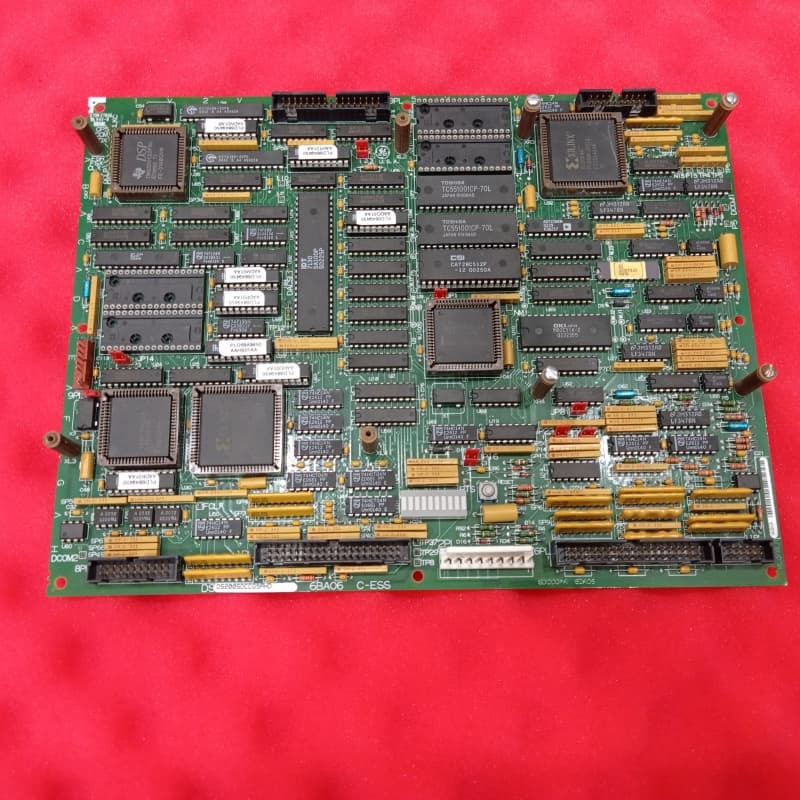

The GE DS200SDCCG5AHD is a Drive Control Board designed for GE’s Mark V Speedtronic system, serving as a core component for drive or exciter control. It is available in G1, G3, G4, and G5 versions (with no G2 variant) and has been replaced by the DS215SDCC board—though the DS215 is not backward compatible due to additional components.

Equipped with all necessary control circuitry and software for drives/exciters, it features interface circuitry to connect, communicate with, and process signals from other boards. Key hardware includes advanced Xilinx chips, integrated circuits, and three specialized processors. It also incorporates multiple resistor network arrays, jumper switches, DIP switches, a reset button, capacitors, resistors, diodes, vertical pin connectors, and standoffs. Each board corner is drilled for easy mounting and marked with the GE logo and board ID.

Key Features:
Mark V Speedtronic Compatibility: Tailored for the Mark V system, ensuring seamless integration into drive/exciter control setups.

Triple-Processor Design: Dedicated processors handle drive control, motor operations, and complex calculations, guaranteeing precise and efficient performance.

Expandable Functionality: Standoffs support daughterboard attachment, allowing users to augment the board’s capabilities per system needs.

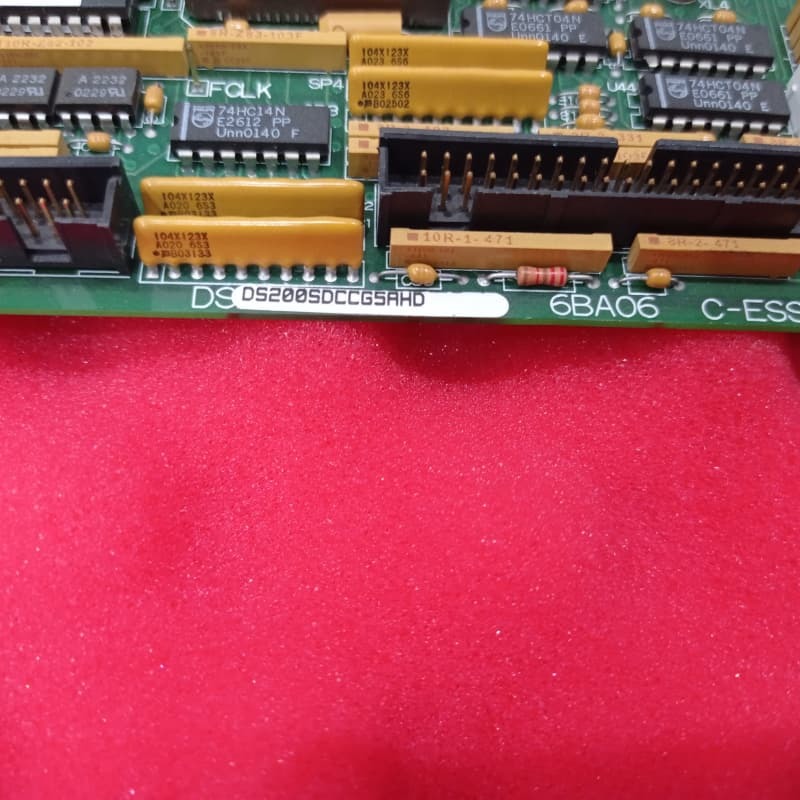

Clear Identification & Mounting: GE logo/board ID for easy recognition, and drilled corners for straightforward installation.

Revised Performance: The “AHD” suffix reflects two functional and one artwork revision, enhancing reliability and durability compared to base models.
