GE IS230SRLYH2A Simplex Relay Output Terminal Board Mark VI
| 起源の場所 | アメリカ合衆国 |
|---|---|
| ブランド名 | GE |
| 証明 | COO |
| モデル番号 | IS230SRLYH2A |
| 最小注文数量 | 1 |
| 価格 | $2600 |
| 受渡し時間 | 5-7日 |
| 支払条件 | T/T |
| 供給の能力 | 999 |
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 名前 | GE IS230SRLYH2Aシンプレックスリレー出力端子ボード | 製品ID | IS230SRLYH2A |
|---|---|---|---|
| シリーズ | マークVI | 保証 | 1年 |
| 製品ネットの深さ/長さ | 330mm | 製品ネットの高さ | 200mm |
| 製品ネット幅 | 100mm | 製品ネットウェイト | 2kg |
| ハイライト | GE Mark VI relay output board,Simplex terminal board for turbine,GE IS230SRLYH2A relay module |
||
製品の説明

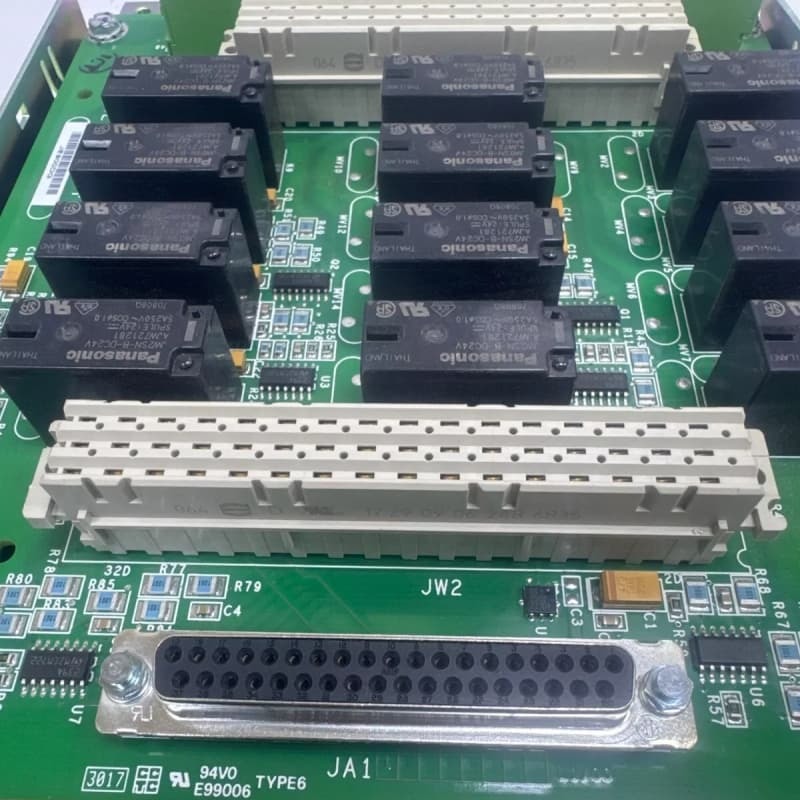

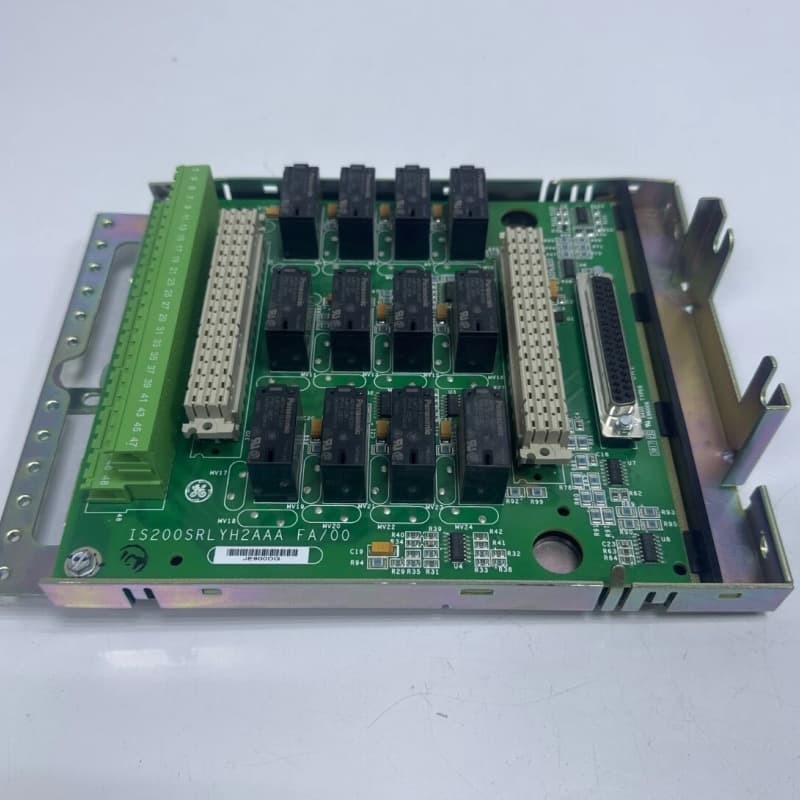

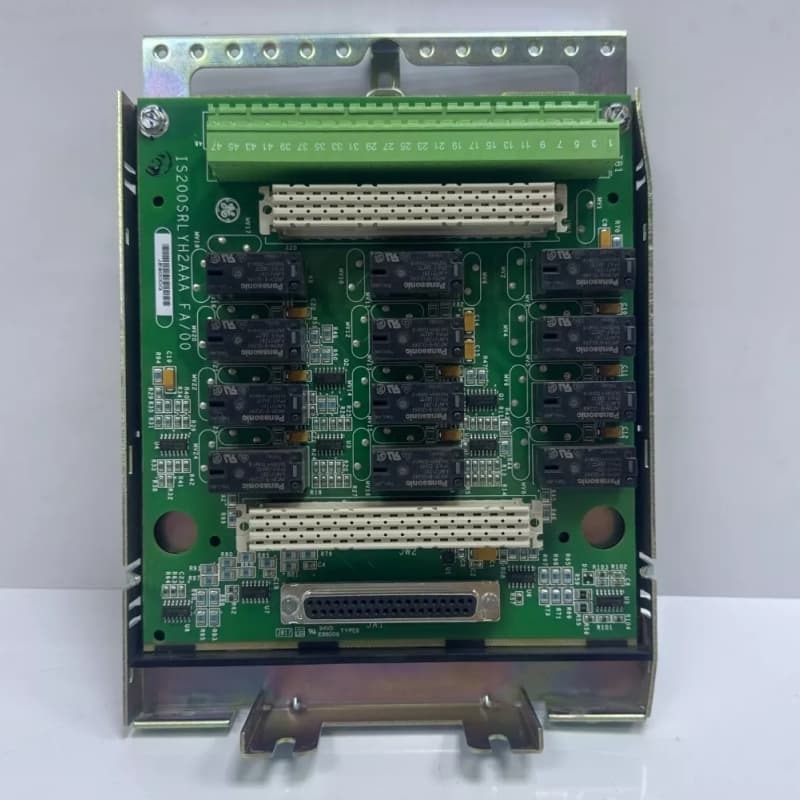

GE IS230SRLYH2A Simplex Relay Output Terminal Board
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS230SRLYH2A Simplex Relay Output Terminal Board |
| Product ID | IS230SRLYH2A |
| Series | Mark VI |
| Warranty | 1 Year |
| Product Net Depth/Length | 330mm |
| Product Net Height | 200mm |
| Product Net Width | 100mm |
| Product Net Weight | 2kg |
Product Overview
The GE IS230SRLYH2A is a Simplex Relay Output Terminal Board under the Mark VIe Series, designed for industrial control systems. This simplex "S-type" terminal board accepts PDOA/YDOA I/O packs and delivers 12 Form C relay output circuits via 48 customer terminals, enabling reliable control of field devices through relay switching.
Key Features
- Relay Output Capabilities: 12 Form C relays with fast response times (100,000 electrical operations and 10,000,000 mechanical operations rating)
- Diagnostic Functionality: Read-only ID chip for hardware compatibility checks and isolated contact pairs for real-time relay status monitoring
- Option Board Compatibility: Supports WROB, WROF, and WROG option boards for extended functionality
- Simplified Installation: Euro-style pluggable terminals and standardized S-type mounting with double stacking capability
- Industrial Durability: Operates in -30 to 65°C with free-air convection cooling, resistant to vibration and temperature fluctuations
Technical Details
Manufactured in the U.S., this surface-mount terminal board features a compact design that aligns with other Mark VIe S-type boards for seamless cabinet integration. It generates diagnostic alarms for fuse status monitoring when paired with option boards.
