GE IS230SDIIH1A Isolated Contact Input Assembly for Mark VIe
| 起源の場所 | アメリカ合衆国 |
|---|---|
| ブランド名 | GE |
| 証明 | COO |
| モデル番号 | IS230SDIIH1A |
| 最小注文数量 | 1 |
| 価格 | $2800 |
| 受渡し時間 | 5-7日 |
| 支払条件 | T/T |
| 供給の能力 | 999 |
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 名前 | GE IS230SDIIH1A分離コンタクト入力アセンブリ | 製品ID | IS230SDIIH1A/IS200SDIIH1A |
|---|---|---|---|
| シリーズ | マークVI | 製品ネットの深さ/長さ | 330mm |
| 製品ネットの高さ | 200mm | 製品ネット幅 | 100mm |
| 保証 | 1年 | 製品ネットウェイト | 2kg |
| ハイライト | GE Mark VIe contact input assembly,isolated input module for turbine control,GE IS230SDIIH1A input assembly |
||
製品の説明

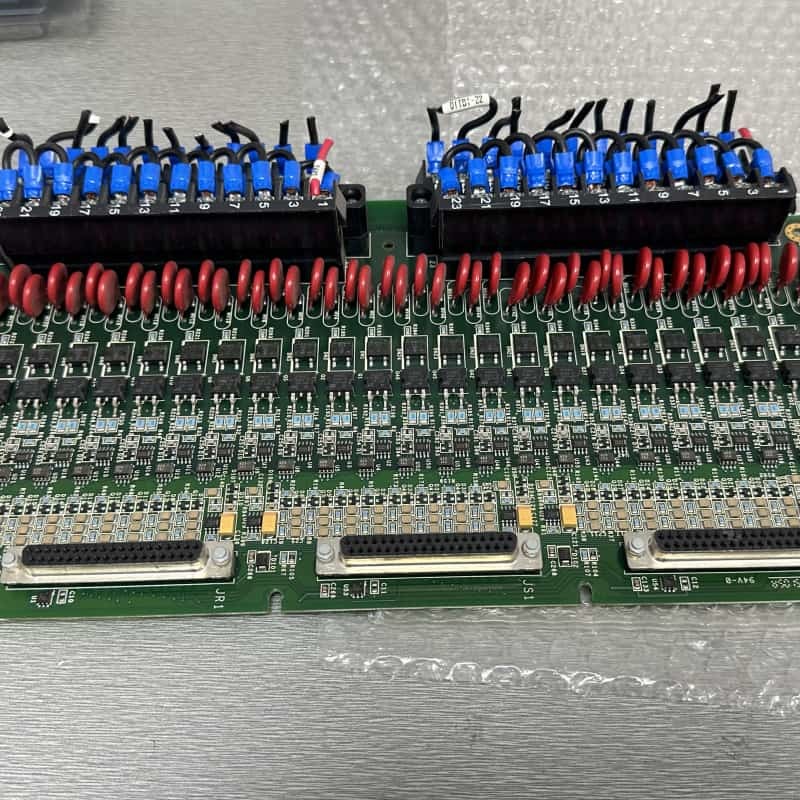

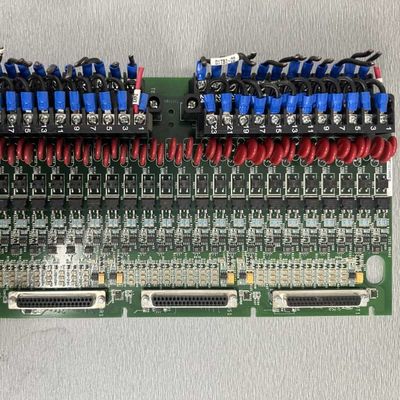

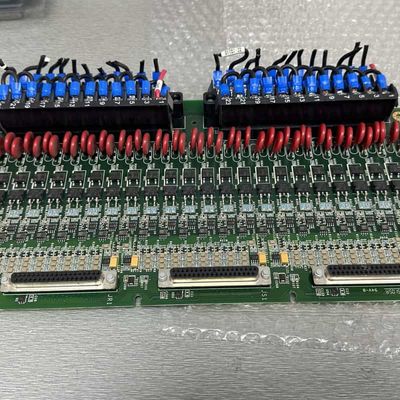

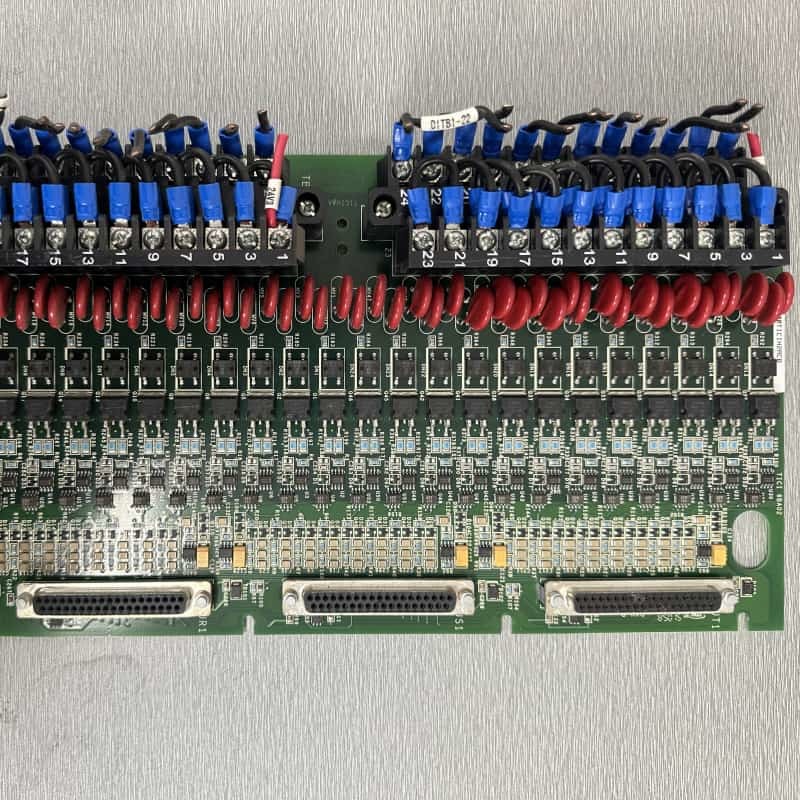

GE IS230SDIIH1A Isolated Contact Input Assembly
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS230SDIIH1A Isolated Contact Input Assembly |
| Product ID | IS230SDIIH1A/IS200SDIIH1A |
| Series | Mark VI |
| Dimensions (H × W × D) | 200mm × 100mm × 330mm |
| Weight | 2kg |
| Warranty | 1 Year |
Product Overview
The GE IS230SDIIH1A is an Isolated Contact Input Assembly from the Mark VIe Series, manufactured in the U.S. for power plant and industrial control systems. This 16-channel isolated input component provides safe, interference-free monitoring of external device contacts through point isolation for each channel.
Key Features
- 16 Isolated Input Channels: Each channel features point isolation for electrical separation between circuits, enhancing safety and minimizing electromagnetic interference.
- Wide Voltage Compatibility: Supports diverse input voltages for flexible integration with various external devices.
- User-Friendly Design: Euro-style pluggable terminals enable easy wiring and maintenance without disrupting other connections.
- Expandable System: Compatible with optional PDII boards for extended functionality and seamless integration with Mark VIe systems.
- Robust Construction: Mounted on a sheet metal carrier with plastic insulator for safety, featuring dedicated chassis grounding terminals.
Applications
This turbine control device is essential for power generation plants, designed to control gas or steam turbine operation for maximum efficiency and safety. Typical applications include:
- Power generation plants
- Industrial control systems
- Compressor and pump control
- Generator monitoring systems
