GE IS220PPRAH1A Emergency Turbine Backup Protection I/O Module
| 起源の場所 | アメリカ合衆国 |
|---|---|
| ブランド名 | GE |
| 証明 | COO |
| モデル番号 | IS220PPRAH1A |
| 最小注文数量 | 1 |
| 価格 | $7500 |
| 受渡し時間 | 5-7日 |
| 支払条件 | T/T |
| 供給の能力 | 999 |
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 名前 | GE IS220PPRAH1A緊急タービンバックアップ保護I/Oモジュール | 製品ID | IS220PPRAH1A |
|---|---|---|---|
| 製品ネットの高さ | 200mm | 保証 | 1年 |
| 製品ネットの深さ/長さ | 330mm | シリーズ | マークVI |
| 製品ネットウェイト | 2kg | 製品ネット幅 | 100mm |
| ハイライト | GE turbine emergency backup module,turbine protection I/O module,GE IS220PPRAH1A control module |
||
製品の説明

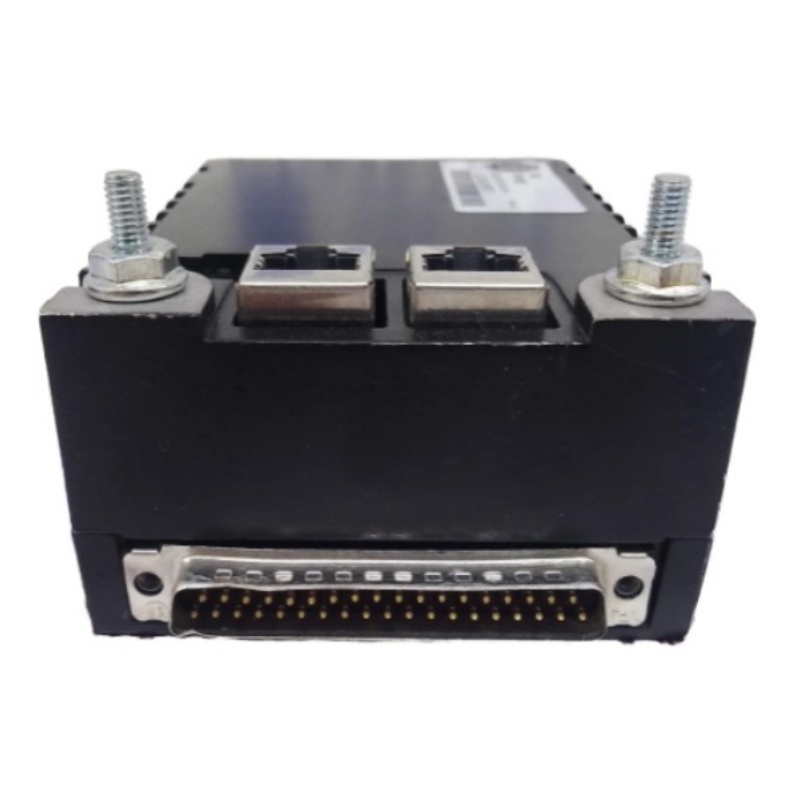

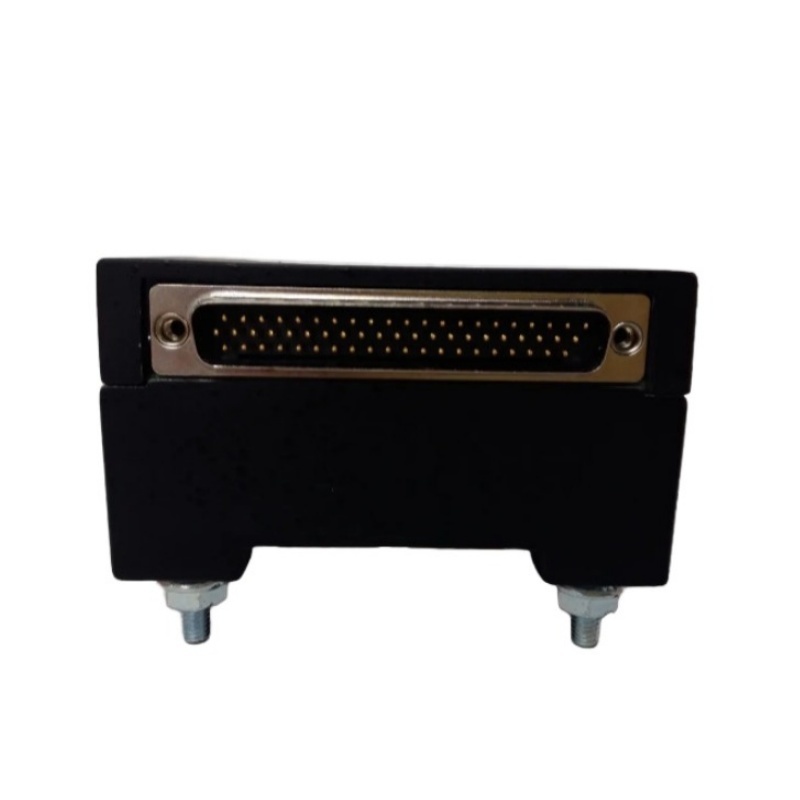

GE IS220PPRAH1A Emergency Turbine Backup Protection I/O Module
| Attribute | Value |
|---|---|
| Name | GE IS220PPRAH1A Emergency Turbine Backup Protection I/O Module |
| Product ID | IS220PPRAH1A |
| Product Net Height | 200mm |
| Warranty | 1 Year |
| Product Net Depth/Length | 330mm |
| Series | Mark VI |
| Product Net Weight | 2kg |
| Product Net Width | 100mm |
Product Overview
The GE IS220PPRAH1A is an Emergency Turbine Backup Protection I/O Module under the Mark VIeS Series, designed for GE Distributed Turbine Control Systems. As a critical safety component, it forms an independent triple modular redundant (TMR) backup overspeed protection system—paired with the TREA terminal board and WREA option board—to safeguard turbines.
Key Features
- Backup Protection & Redundancy: Operates as a TMR system (requires 3 PPRA packs on TREA/WREA) for reliable overspeed protection, preventing single/dual-pack failures. Adds 6-speed inputs for dual-speed sensors per shaft.
- Technical Specifications: Runs on 24 V DC (≤15 W power), with 16 input channels (0-5 V) and 2 transducers. Supports 1.5 Hz pressure wave frequency, 2 Hz MPU pulse rate, and Modbus TCP/IP.
- Compatibility & Connectivity: Mounts exclusively to TREA terminal boards with WREA option board. Dual 10/100 Ethernet ports enable flexible network links.
- Reliability & Diagnostics: High-speed processor, hardware watchdog, internal temp sensor, and status LEDs. Soft-start power control limits inrush current.
- Industrial Design: Surface-mounted with conformal PCB coating for durability. Modular "IS220" pack-style design for easy installation.
Environmental Specifications
Operates at -20 to +70°C, with max 15Ω lead resistance for signal integrity. IEC 61508/61511 certified safety loops.
