Product Description:

The GE IS220PSVOH1B is a Servo Interface I/O Pack with an RTD Terminal Board, integral to the Mark VIe series for steam and gas turbine control systems. It acts as a critical electrical interface, connecting 1–2 Ethernet I/O networks to servo terminal boards while integrating RTD (Resistance Temperature Device) capabilities for temperature monitoring. This "B"-revision pack builds on its predecessor, enhancing reliability in precision turbine actuation and thermal sensing.

Key Features:
Dual Functionality: Combines servo control and RTD temperature monitoring, managing servo valve position loops via a dedicated driver module while supporting RTD inputs for real-time temperature data.

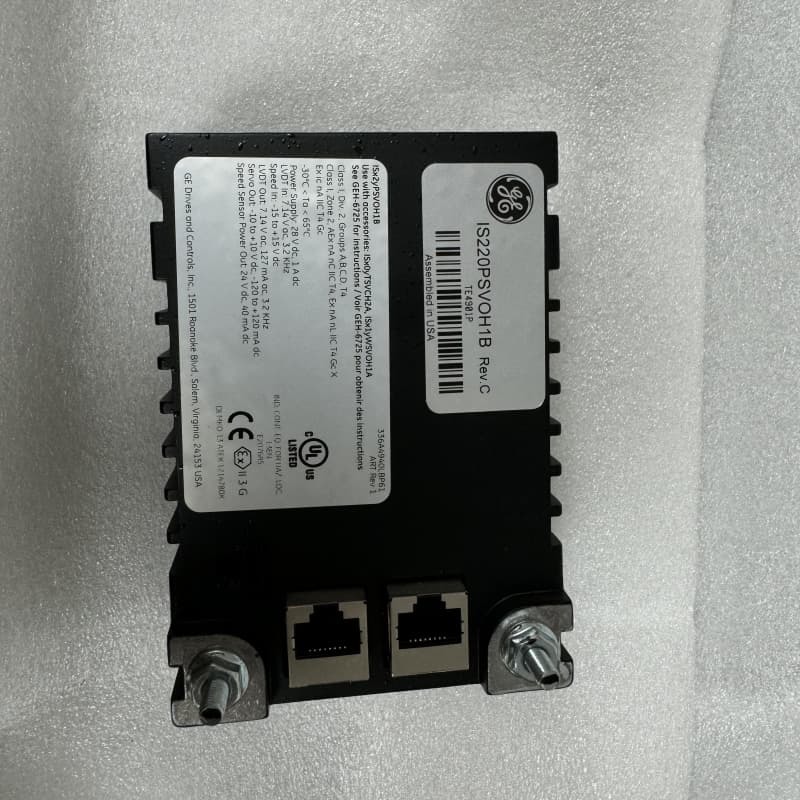

Connectivity: Equipped with dual 10/100 Ethernet ports for redundant communication, a power input, and connectors linking to terminal boards, ensuring seamless network integration.

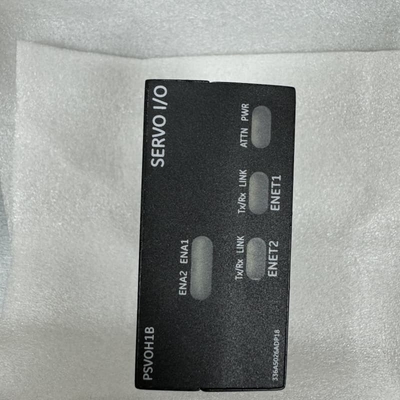

Diagnostics: Front-facing LEDs indicate Ethernet status, power, and alerts; includes self-tests for hardware integrity and signal validation to minimize downtime.

Industrial Durability: Designed to operate in harsh environments, with robust casing and components resisting vibration, temperature swings, and electrical noise.

Compatibility: Integrates with Mark VIe control architectures, supporting auto-reconfiguration via ToolboxST for quick setup/replacement in turbine management systems.
