GE IS215VPROH2BC Turbine Protection Board Mark V Series

The GE IS215VPROH2BC is a Turbine Protection Board in the Mark VI Speedtronic control system, critical for gas, steam, and wind turbine safety. As part of a triple-redundant setup, it works with TPRO and TREG terminal boards to deliver independent emergency overspeed protection and emergency stop functions, controlling trip solenoids to halt turbines during critical faults.

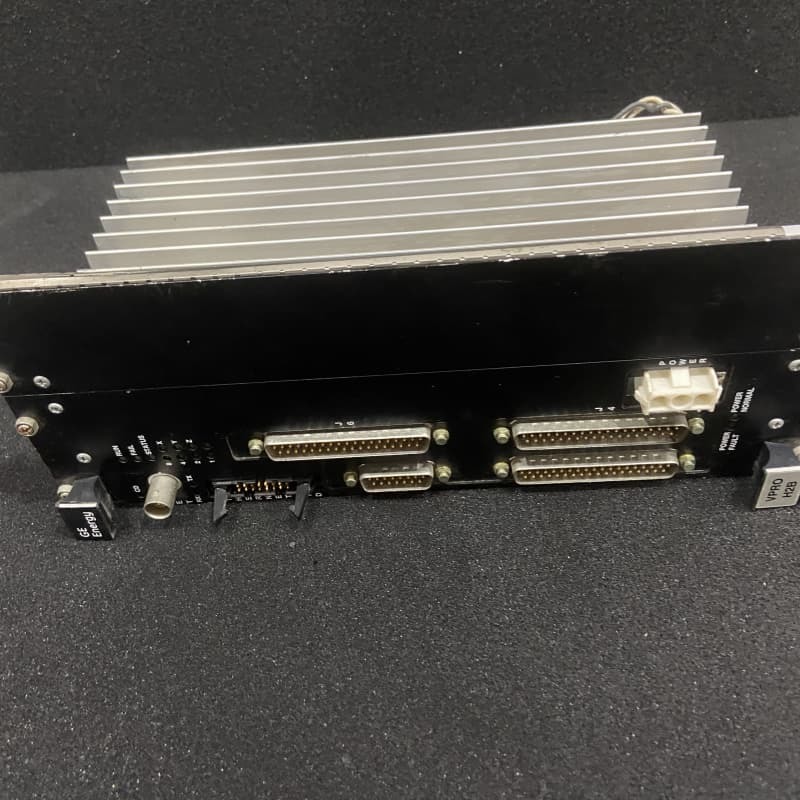

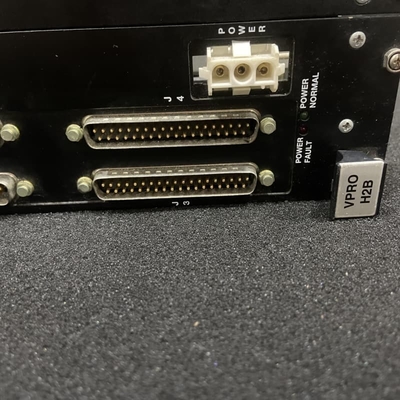

This board features a front faceplate with diagnostic LEDs, power/communication ports, and rear stacked boards with components like capacitors, integrated circuits, and heat sinks. It supports nine thermocouples for exhaust over-temperature monitoring and three analog inputs, with isolated backplanes ensuring redundancy. Compatible with simplex/TMR systems, it allows hot-swap replacement without disrupting operation.

• Triple Redundancy: Part of a three-board system for fault tolerance, ensuring protection even if one board fails.
• Emergency Protection: Triggers overspeed and emergency stops via TREG/TRPG boards, controlling up to three trip solenoids.

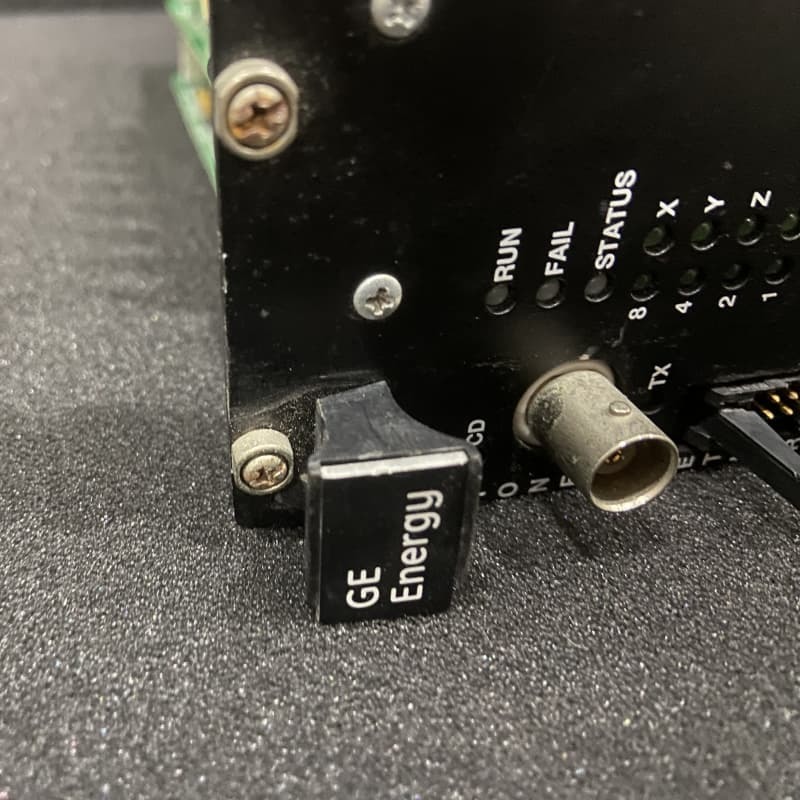

• Diagnostic Tools: Front LEDs indicate status; supports thermocouple and analog inputs for comprehensive monitoring.
• Hot-Swap Capability: Enables replacement during turbine operation, maintaining system reliability.
• Isolated Design: Rear backplanes prevent cross-talk between redundant sections, enhancing safety integrity.
