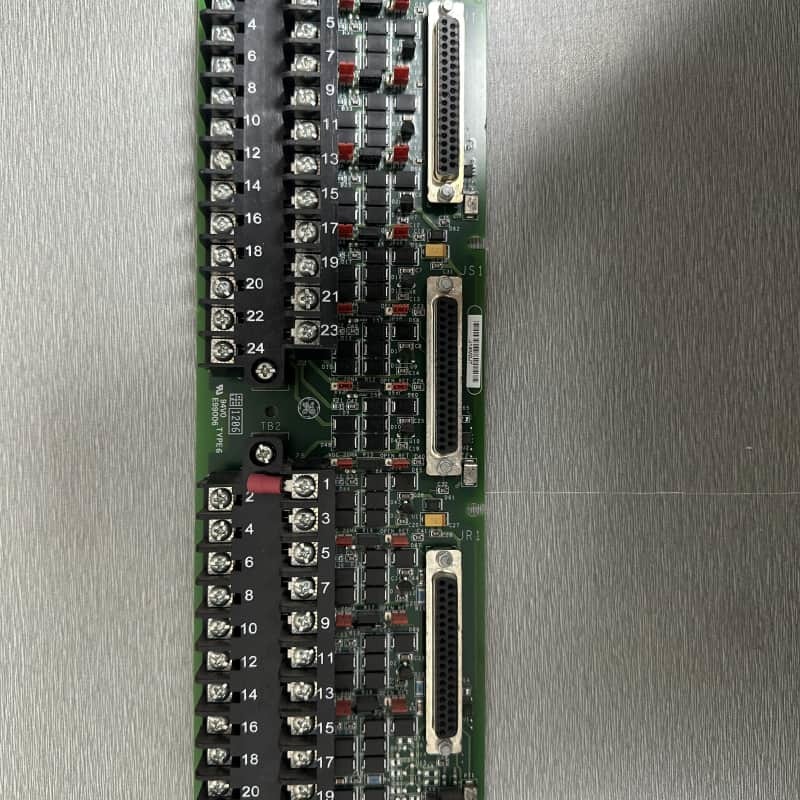

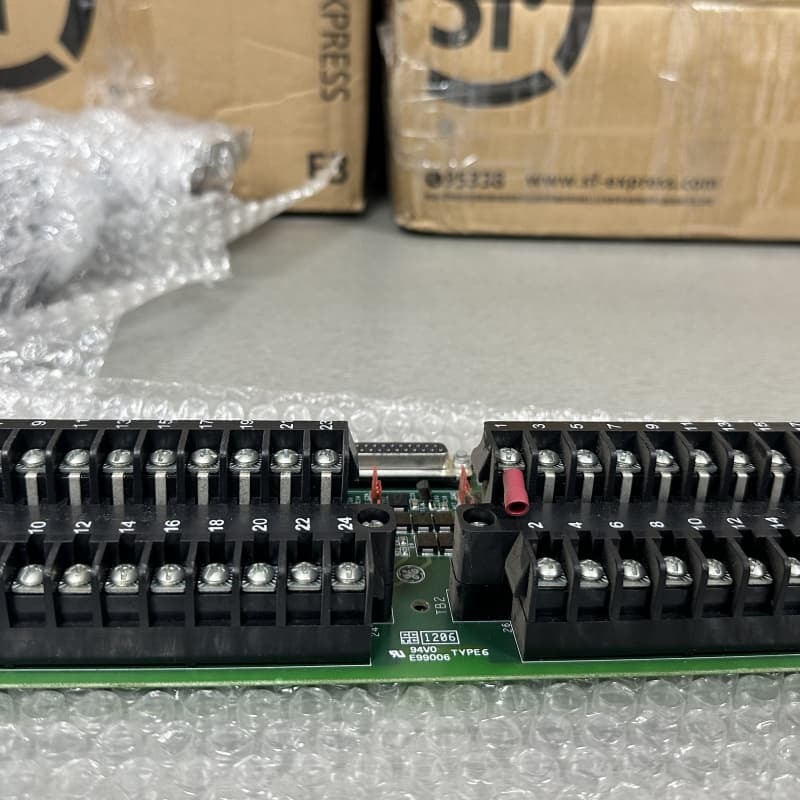

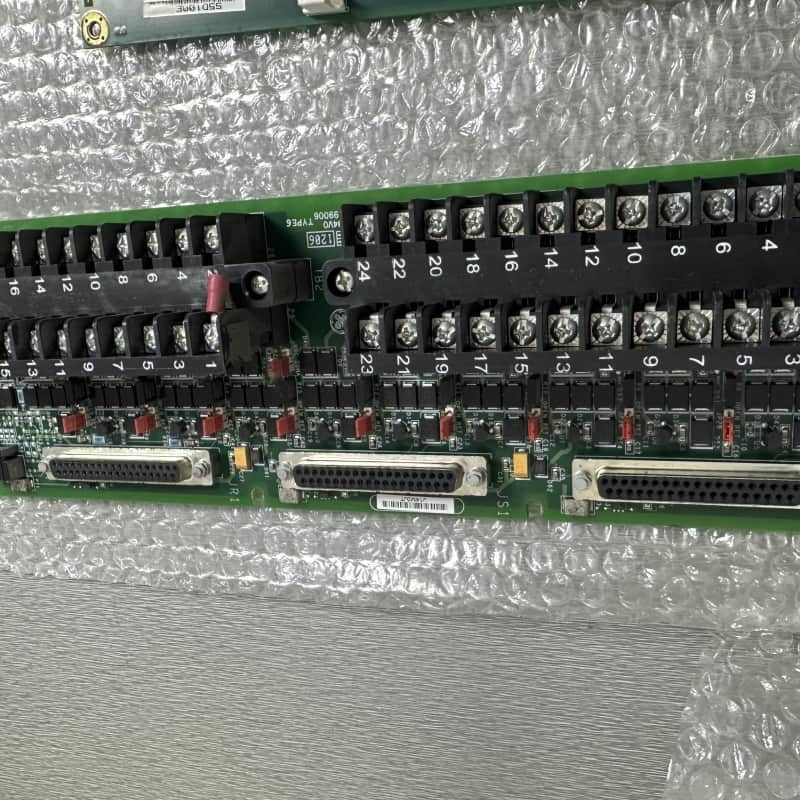

GE IS200TBAIH1CCC Analog Input Terminal Board for Mark VI
| Place of Origin | US |
|---|---|
| ブランド名 | GE |
| Model Number | IS200TBAIH1CCC |
| Minimum Order Quantity | 1pc |
| 価格 | $2500 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| Name | GE IS200TBAIH1CCC Analog Input Terminal Board | Product ID | IS200TBAIH1CCC |
|---|---|---|---|
| Series | Mark VI | Function | Analog Input Terminal Board |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| ハイライト | GE Mark VI analog input board,turbine control terminal board,IS200TBAIH1CCC input module |
||
製品の説明
GE IS200TBAIH1CCC Analog Input Terminal Board
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS200TBAIH1CCC Analog Input Terminal Board |
| Product ID | IS200TBAIH1CCC |
| Series | Mark VI |
| Function | Analog Input Terminal Board |
| Dimensions (L x W x H) | 330mm x 100mm x 200mm |
| Weight | 2kg |
| Warranty | 1 year |
Product Overview
The GE IS200TBAIH1CCC is an analog input terminal board designed for the Mark VI control system. This robust component features 10 analog inputs and 2 outputs, supporting various transmitter configurations including two-wire, three-wire, four-wire, and externally powered transmitters. The analog outputs are configurable to either 0-20 mA or 0-200 mA ranges.
Key Features
- 10 analog inputs and 2 outputs with configurable current ranges (0-20 mA or 0-200 mA)
- Advanced noise suppression circuitry for protection against surges and high-frequency interference
- Supports simplex or Triple Modular Redundant (TMR) configurations via three DC-37 pin connectors
- TMR capability distributes inputs across R, S, T controls with aggregated current output for regulation
- Flexible jumper-based configuration for input types and return connections
- Toolbox integration for advanced VAIC/PAIC settings
- 24-terminal blocks with shield attachments for stable, low-interference connections (supports up to #12 AWG wires)
Installation & Configuration
The board connects via cables or directly to electronics using three DC-37 pin connectors. Installation involves wiring to two 24-terminal blocks (accommodating up to #12 AWG wires) with adjacent shield terminals. Configuration is achieved through jumper settings for input types and return connections, complemented by toolbox software for VAIC/PAIC settings.
