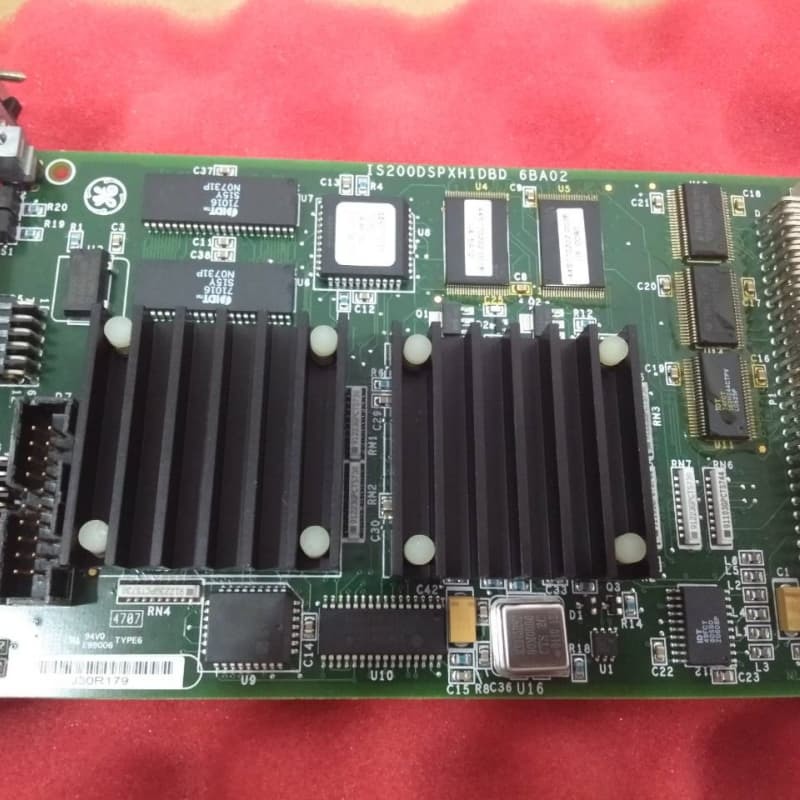

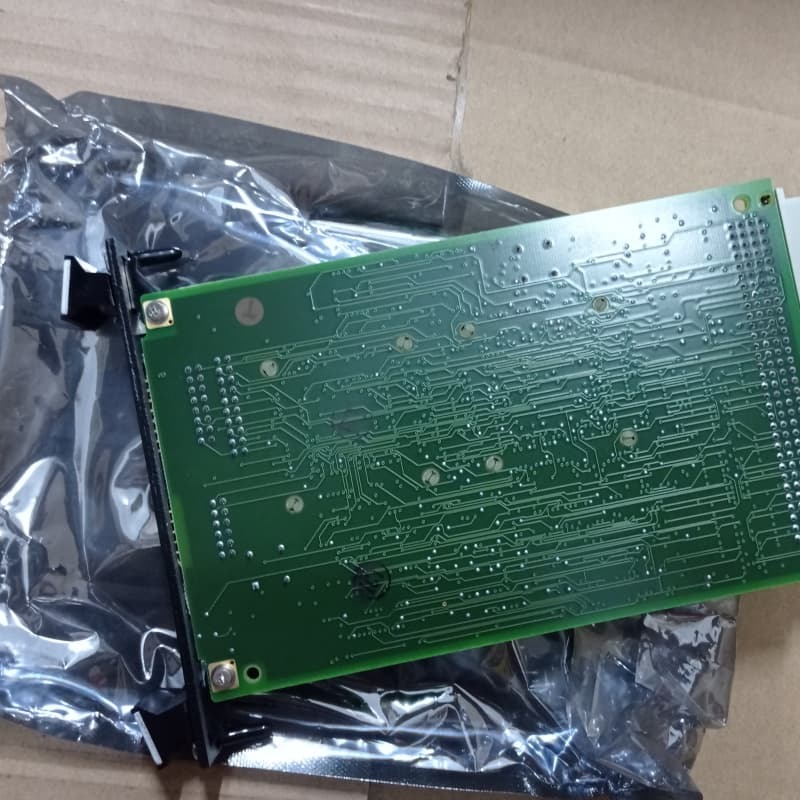

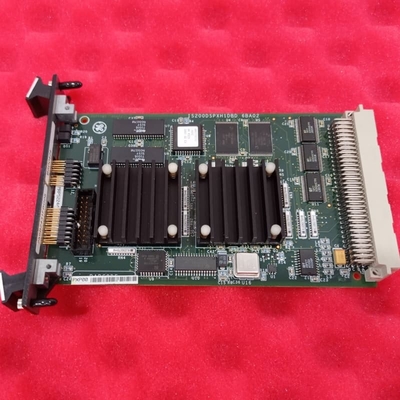

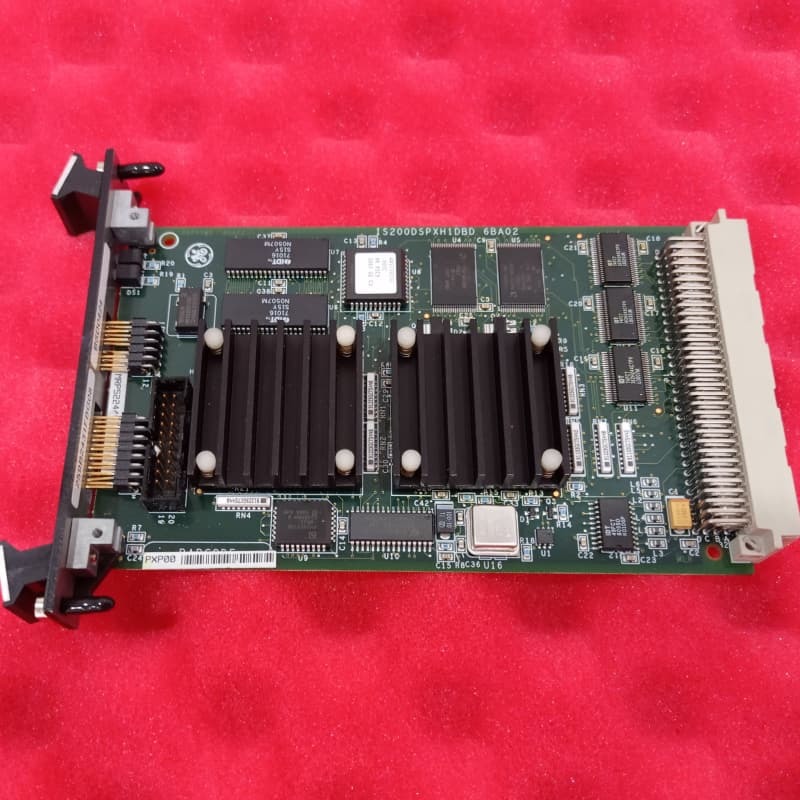

GE IS200DSPXH1BBD Mark VI Digital Signal Processor Control Board
| Place of Origin | USA |
|---|---|
| ブランド名 | GE |
| 証明 | COO |
| Model Number | GE IS200DSPXH1BBD Mark VI Digital Signal Processor Control Board |
| Minimum Order Quantity | 1 |
| 価格 | $5800 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| Name | GE IS200DSPXH1BBD Mark VI Digital Signal Processor Control Board | Product ID | IS200DSPXH1BBD |
|---|---|---|---|
| Series | Mark VI | Product Net Weight | 2kg |
| Product Net Depth/Length | 330mm | Product Net Width | 100mm |
| Product Net Height | 200mm | Warranty | 1 Year |
製品の説明
Product Description:
The IS200DSPXH1BBD is a Digital Signal Processor (DSP) Control Board developed by General Electric, part of industrial control systems Mark series. As a DSP-based board, it specializes in processing digital signals to manage and regulate industrial operations, in turbines, drives, or power systems.
Its core function involves real-time signal analysis, control algorithm execution, and coordination with other system components. Designed for reliability, it integrates into GE's control architecture, supporting precise operation through advanced digital signal processing capabilities. Though specific details vary, such boards typically enable efficient system monitoring, adjustment, and response, ensuring optimal performance in complex industrial environments.
Features:
1.Hardware Revisions & Coating: Features functional revision B, ISBus Revision One, group variation H, and conformal coating for protection.
2.I/O Connectors: Equipped with three connectors (P1, P5, P6):
P1: Backplane connector enabling memory mapping.
P5: DSP emulator port supporting emulation scanning and FLASH programming.
P6: Engineering monitor port connecting to the DSP synchronous serial port.
3.Installation & Compatibility:Mounts in a board rack, connecting to the backplane via a 128-pin, 4-row DIN connector, can be attached to/detached from the EISB model, offering configuration flexibility.
4.DSP Capabilities:Operates at 60 MHz, enabling fast real-time handling of complex mathematical operations. Optimized for signal processing tasks (filtering, modulation, etc.) with dedicated ALUs and MACs for efficient multiply-accumulate operations.
5.Memory & Hardware: Integrates Flash, NVRAM, RAM, and Add-Only memory; includes standard components like stack overflow (INT0), inner loop load pulse (INT1), and two configurable inputs (INT2/INT3).
Technical Parameters:
| Product ID: | IS200DSPXH1BBD |
| Warranty: | 1 Year |
| Name: | GE IS200DSPXH1BBD Mark VI Digital Signal Processor Control Board |
| Product Net Depth/Length: | 330mm |
| Product Net Height: | 200mm |
| Product Net Width: | 100mm |
| Product Net Weight: | 2kg |
| Series: | Mark VI |
